Chassis Part ES3122R

Tie Rod End

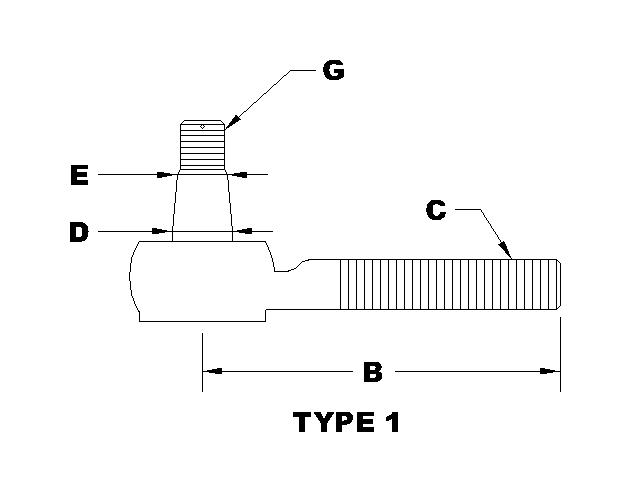

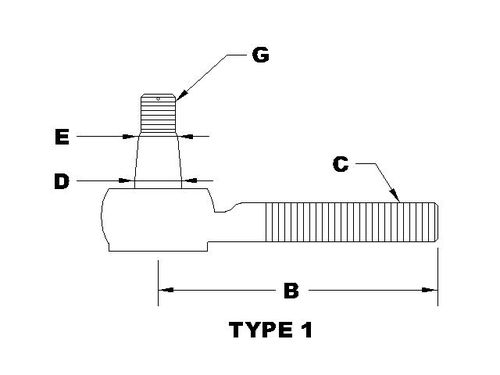

Specification Type	Data
End 1 Gender	Male
End 1 Thread Diameter (C)	0.875
End 1 Thread Diameter UOM	IN
End 1 Thread Direction	Clockwise
End 1 Threads Per Inch	18
End 2 Gender	Male
Grade Type	Standard
Length Stud Center to End (B)	10.64
Length Stud Center to End UOM	IN
Stud Large Diameter (D)	0.771
Stud Large Diameter_UOM	IN
Stud Small Diameter (E)	0.685
Stud Small Diameter_UOM	IN
Stud Type	Threaded
Tie Rod Material	Steel
Type	Straight
Washer Included	No

Chassis Part ES3122R (Tie Rod End)

• Product Line: Steering Tie Rod End
• Marketing Description: Improve steering responsiveness with Elgin Industries Steering Tie Rod. Precision-engineered for optimal performance, these high-quality tie rods ensure precise movement, reducing play in your steering system. Elevate your driving experience with Elgin Industries' Steering Tie Rod. Crafted for precision, Elgin Industries tie rods minimize play, providing responsive and controlled steering for a safer and more enjoyable ride.
• Application Specific: Yes
• Description: Outer, '88-93 w/Diesel, 4.44" RH Thread
• Quantity: 2
• Year: 1988–93
• UPC: 013122074262

Applications

2 Chassis found

Manufacturer	Chassis Models	Description	Year	Next →
DODGE TRUCK	D200, D200 PICKUP, D250	(3/4 TON)	1972–93	Details
DODGE TRUCK	D300, D300 PICKUP	D350, D450, thru 1983 (1 TON)	1972–93	Details

Back to Applications…
