Chassis Part ES3247RT

Tie Rod End

Specification Type	Data
Adjustable	No
Adjusting Sleeve Included	No
Boot Color	Black
Castle Nut Included	Yes
Color	Phosphate
Cotter Pin Incuded	Yes
Dust Boot Included	Yes
Dust Boot Material	Rubber
End 1 Gender	Male

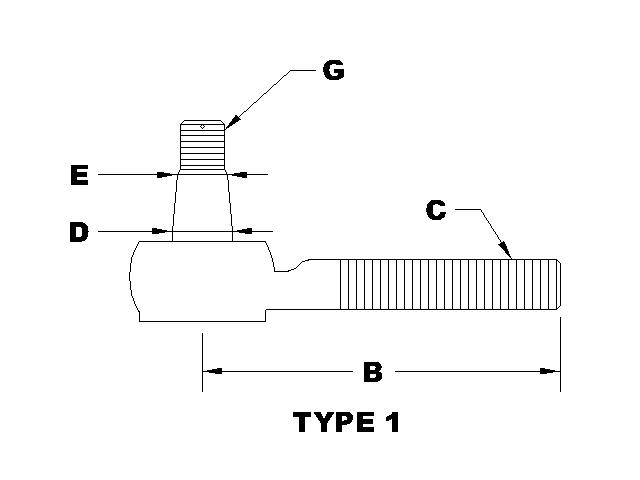

End 1 Thread Diameter (C)	1.000
End 1 Thread Diameter UOM	IN
End 1 Thread Direction	Clockwise
End 1 Threads Per Inch	18
End 2 Gender	Male
End 2 Thread Diameter (G)	14.000
End 2 Thread Diameter UOM	MM
End 2 Thread Pitch	1.5
Finish	Uncoated
Grade Type	Standard
Grease Fitting Included	Yes
Greaseable	Yes
Length Stud Center to End (B)	6.54
Length Stud Center to End UOM	IN
Locking Nut Included	No
Mounting Hardware Included	Yes
Pre-Greased	Yes
Stud Large Diameter (D)	0.695
Stud Large Diameter_UOM	IN
Stud Small Diameter (E)	0.594
Stud Small Diameter_UOM	IN
Stud Type	Threaded
Tie Rod Material	Steel
Type	Straight
Washer Included	No

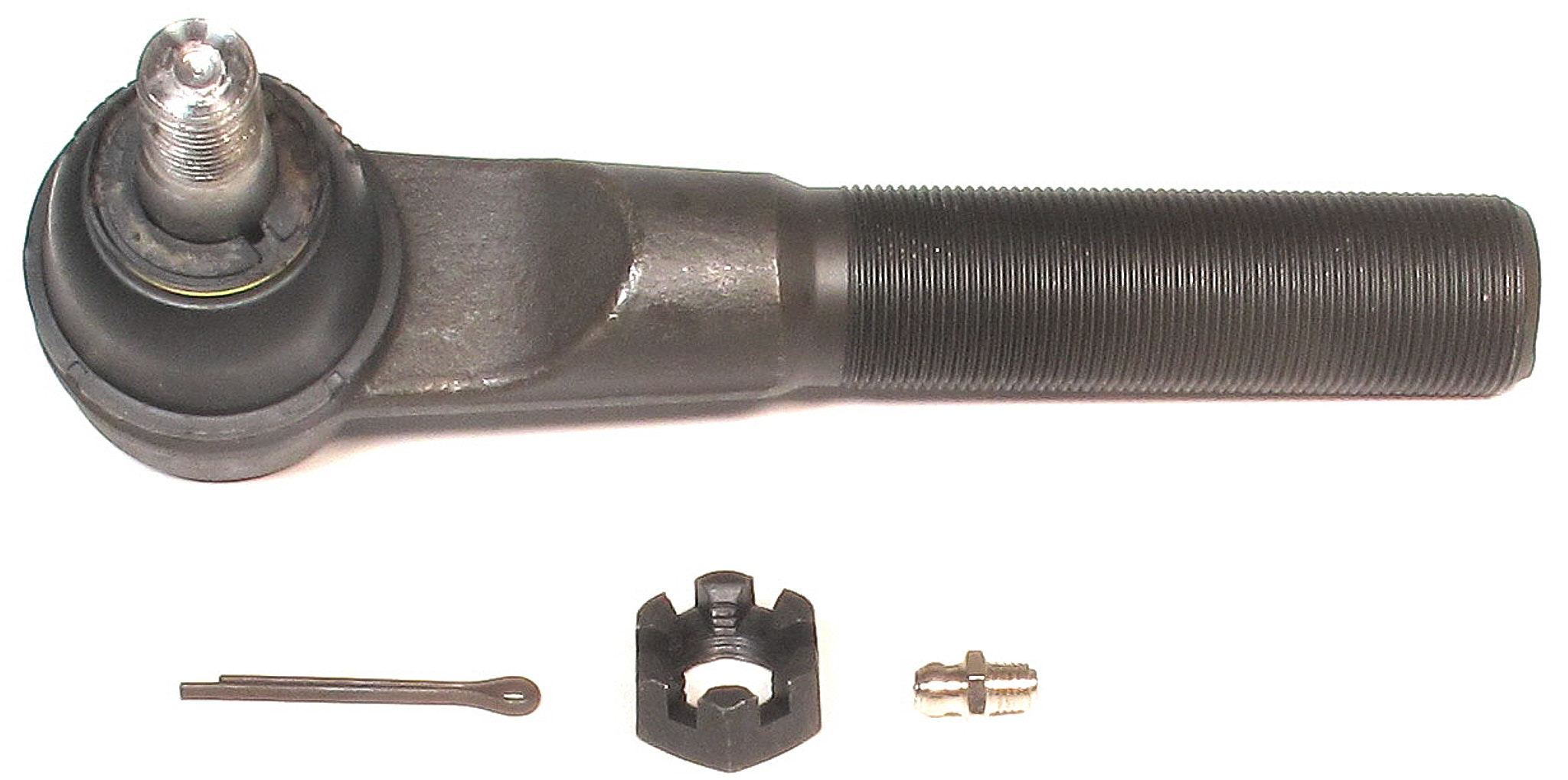

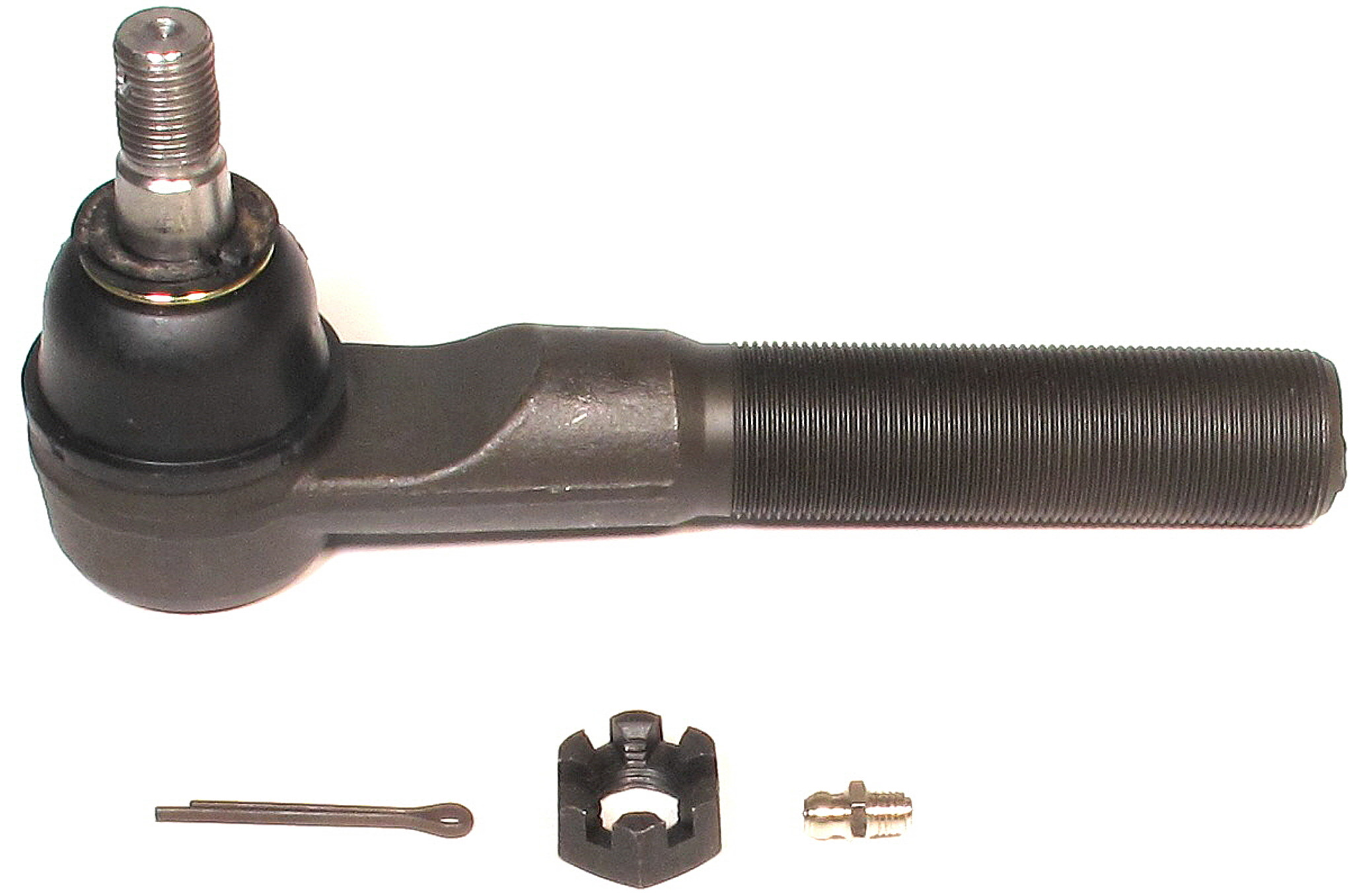

Chassis Part ES3247RT (Tie Rod End)

• Product Line: Steering Tie Rod End
• Marketing Description: Improve steering responsiveness with Elgin Industries Steering Tie Rod. Precision-engineered for optimal performance, these high-quality tie rods ensure precise movement, reducing play in your steering system. Elevate your driving experience with Elgin Industries' Steering Tie Rod. Crafted for precision, Elgin Industries tie rods minimize play, providing responsive and controlled steering for a safer and more enjoyable ride.
• Application Specific: Yes
• Description: Outer, Driver Side, 6.50" Light Duty
• Quantity: 1
• UPC: 013122142954

Applications

4 Chassis found

Manufacturer	Chassis Models	Description	Year	Next →
DODGE TRUCK	RAM 1500	(1/2 TON)	1994–10	Details
DODGE TRUCK	RAM 2500	(3/4 TON)	1994–10	Details
DODGE TRUCK	RAM 3500	w/DANA 60 AXLE (1 TON)	1994–10	Details
DODGE TRUCK	RAM 3500	CHASSIS CAB w/138.7" & 162.7" WHEELBASE w/SOLID FRONT AXLE (1 TON)	1994–02	Details

Back to Applications…
