Chassis Part ES800312
Tie Rod End

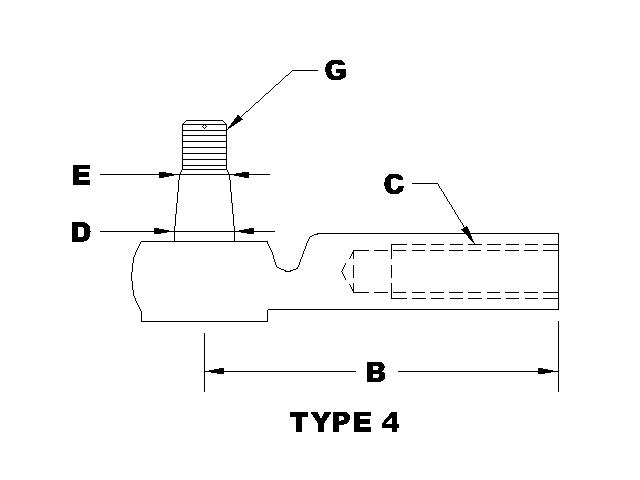

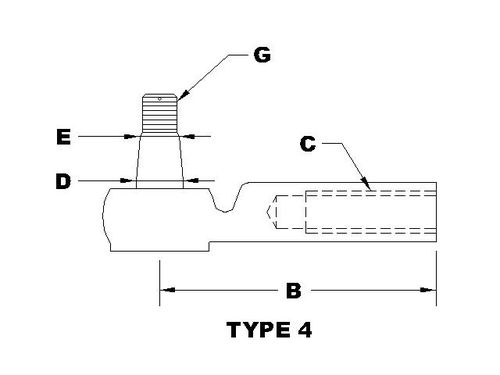

| Specification Type | Data |
|---|---|
| End 1 Gender | Female |
| End 1 Thread Diameter (C) | 14.000 |
| End 1 Thread Diameter UOM | MM |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter (G) | 12.000 |
| End 2 Thread Diameter UOM | MM |
| End 2 Thread Pitch | 1.25 |
| Grade Type | Standard |
| Length Stud Center to End (B) | 6.81 |
| Length Stud Center to End UOM | IN |
| Stud Large Diameter (D) | 0.590 |
| Stud Large Diameter_UOM | IN |
| Stud Small Diameter (E) | 0.500 |
| Stud Small Diameter_UOM | IN |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Straight |
Chassis Part ES800312 (Tie Rod End)
- Product Line: Steering Tie Rod End
- Marketing Description: Improve steering responsiveness with Elgin Industries Steering Tie Rod. Precision-engineered for optimal performance, these high-quality tie rods ensure precise movement, reducing play in your steering system. Elevate your driving experience with Elgin Industries' Steering Tie Rod. Crafted for precision, Elgin Industries tie rods minimize play, providing responsive and controlled steering for a safer and more enjoyable ride.
- Application Specific: Yes
- Description: Outer, Pass. Side, '07-11; '12-14 w/Rear Drum Brakes
- Quantity: 1
- Year: 2007–14
- UPC: 013122337725
