Elgin Industries

Engine Part E-1768-S

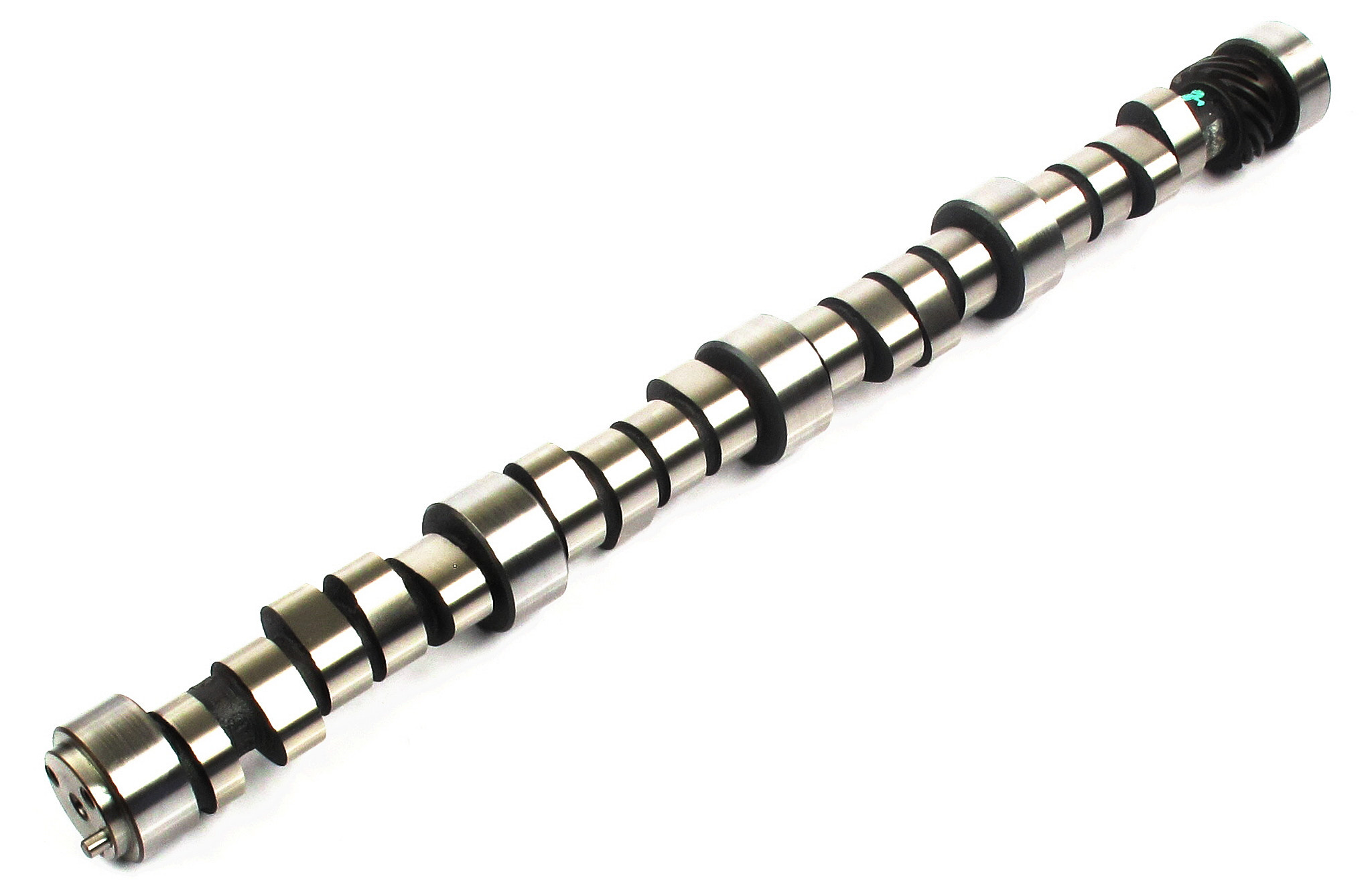

Camshaft

Specification Type Data
Advertised Exhaust Duration 298
Advertised Exhaust Duration UOM DD
Advertised Intake Duration 273
Advertised Intake Duration UOM DD
Basic Operating RPM Range 1500-4000
Basic Operating RPM Range UOM R3
Cam Type Hydraulic Roller
Computer Controlled Compatible Yes
Exhaust Centerline 118
Exhaust Centerline UOM DD
Exhaust Duration at .050 inch Lift 209
Exhaust Duration at .050 inch Lift UOM DD
Exhaust Lobe Lift 0.284
Exhaust Lobe Lift UOM IN
Exhaust Valve Lift 0.483
Exhaust Valve Lift UOM IN
Exhaust Valve Lift with Factory Rocker Arm Ratio .483
Exhaust Valve Lift with Factory Rocker Arm Ratio UOM IN
Grade Type Regular
Ground In Advance No
Intake Centerline 118
Intake Centerline UOM DD
Intake Duration at .050 inch Lift 204
Intake Duration at .050 inch Lift UOM DD
Intake Lobe Lift 0.282
Intake Lobe Lift UOM IN
Intake Valve Lift 0.480
Intake Valve Lift UOM IN
Intake Valve Lift with Factory Rocker Arm Ratio .480
Intake Valve Lift with Factory Rocker Arm Ratio UOM IN
Lifter Type Hydraulic Flat Tappet
Lobe Separation 118
Lobe Separation UOM DD
Material Ductile Iron
Intake Opens at .050 inch Lift -15 BTC
Intake Opens at .050 inch Lift UOM DD
Exhaust Opens at .050 inch Lift 42 BBC
Exhaust Opens at .050 inch Lift UOM DD
Intake Closes at .050 inch Lift 39 ABC
Intake Closes at .050 inch Lift UOM DD
Exhaust Closes at .050 inch Lift -13 ATC
Exhaust Closes at .050 inch Lift UOM DD
Over Lap 51.0
Over Lap UOM DD
Camshaft Range B
Engine Group No. 00

Engine Part E-1768-S (Camshaft)


Applications

3 Engines found

Manufacturer Engine Year Next →
CHEVROLET 454CID (7.4L) GAS 1970–00 Parts & Details
PONTIAC 454CID (7.4L) GAS 1970–00 Parts & Details
GMC 454CID (7.4L) GAS 1970–00 Parts & Details
