| Advertised Exhaust Duration |
283 |
| Advertised Exhaust Duration UOM |
DD |
| Advertised Intake Duration |
273 |
| Advertised Intake Duration UOM |
DD |
| Basic Operating RPM Range |
1000-3200 |
| Basic Operating RPM Range UOM |
R3 |

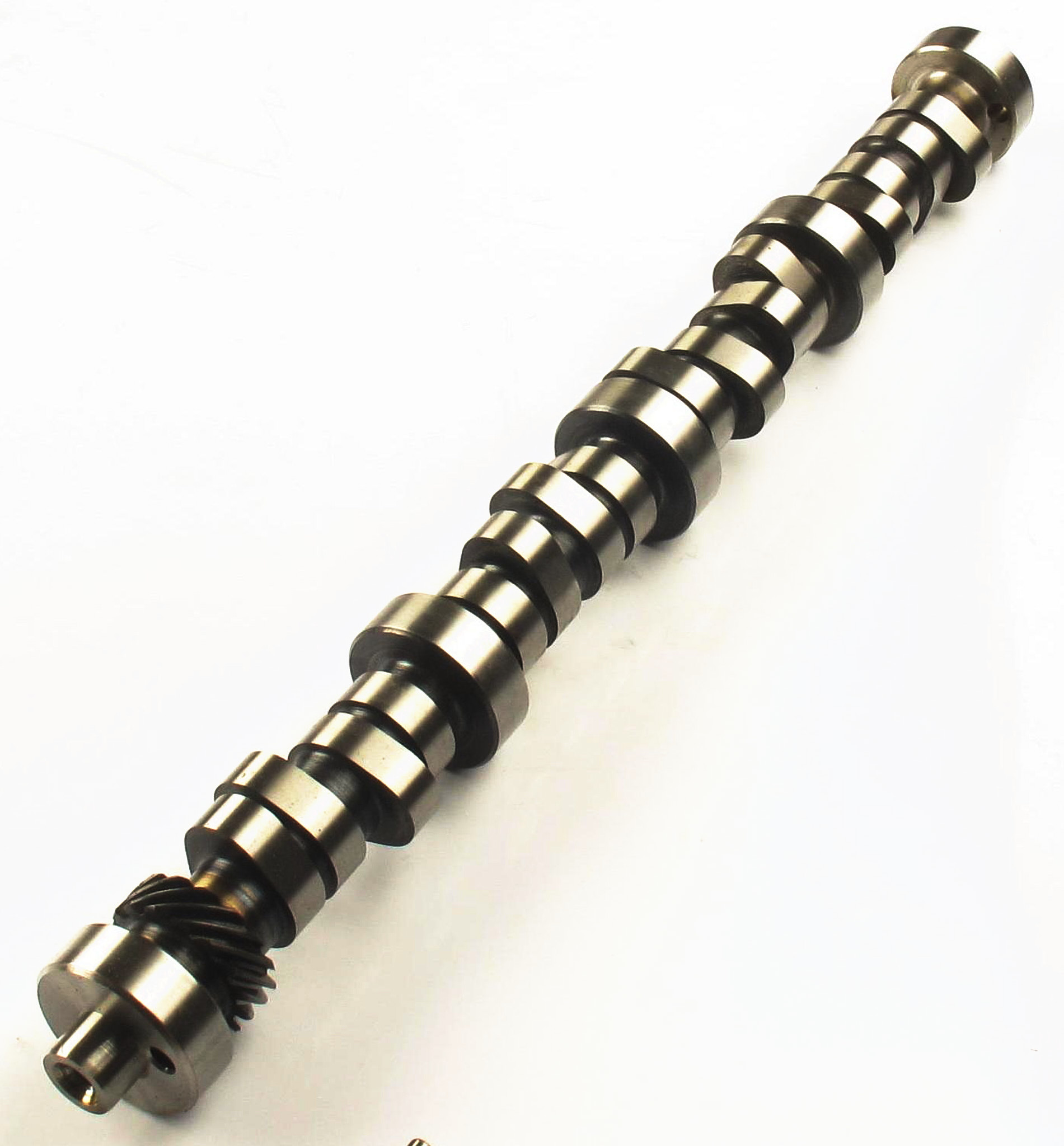

| Cam Type |
Hydraulic Roller |
| Computer Controlled Compatible |
Yes |
| Exhaust Centerline |
113 |
| Exhaust Centerline UOM |
DD |
| Exhaust Duration at .050 inch Lift |
197 |
| Exhaust Duration at .050 inch Lift UOM |
DD |
| Exhaust Lobe Lift |
0.279 |
| Exhaust Lobe Lift UOM |
IN |
| Exhaust Valve Lift |
0.447 |
| Exhaust Valve Lift UOM |
IN |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
.447 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio UOM |
IN |
| Grade Type |
Regular |
| Intake Centerline |
118 |
| Intake Centerline UOM |
DD |
| Intake Duration at .050 inch Lift |
186 |
| Intake Duration at .050 inch Lift UOM |
DD |
| Intake Lobe Lift |
0.263 |
| Intake Lobe Lift UOM |
IN |
| Intake Valve Lift |
0.421 |
| Intake Valve Lift UOM |
IN |
| Intake Valve Lift with Factory Rocker Arm Ratio |
.421 |
| Intake Valve Lift with Factory Rocker Arm Ratio UOM |
IN |
| Lifter Type |
Hydraulic Flat Tappet |
| Lobe Separation |
115.5 |
| Lobe Separation UOM |
DD |
| Material |
Ductile Iron |
| Lifter Partno |
HL-2205 |
| Intake Opens at .050 inch Lift |
-25 BTC |
| Intake Opens at .050 inch Lift UOM |
DD |
| Exhaust Opens at .050 inch Lift |
32 BBC |
| Exhaust Opens at .050 inch Lift UOM |
DD |
| Intake Closes at .050 inch Lift |
31 ABC |
| Intake Closes at .050 inch Lift UOM |
DD |
| Exhaust Closes at .050 inch Lift |
-15 ATC |
| Exhaust Closes at .050 inch Lift UOM |
DD |
| Over Lap |
47.0 |
| Over Lap UOM |
DD |
| Camshaft Range |
A |
| Engine Group No. |
00 |
